Model 285G Forklift Attachment designed to lift and pour ONLY a 55-gallon (210 liter) steel drum

Model 285G

Forklift-Karrier with 3-Piece Drum Holder. Pull chain drum tilt control. Requires 25" between forks. 800 Lb. capacity.

All about Model 285G

Specific to Model 285G

Model 285G has 3-Piece Drum Holder ONLY for ribbed 55-gallon (210 liter) steel drum
Pull chain manual drum tilt control to rotate drum 360° forward and back to dispense drum
Install correct MORCINCH^TM Kit to handle plastic or fiber drum
Insert Diameter Adapter 55/30-19GR for 30-gallon drum with 18.5" to 19" (47 to 48.3 cm) diameter
We recommend the MORStop^TM Tilt-Brake Option to automatically hold drum tilt angle, until operator turns it

All Forklift Attachments to Lift and Pour Drum

SAFETY-CONSCIOUS Forklift Drum Handlers Eliminate DANGEROUS bare fork drum handling
Use Morse Forklift-Karriers to Lift, Move and Pour a drum with your forklift
Easy to mount forklift drum attachments onto forks
Require 25" (63.5 cm) between forks

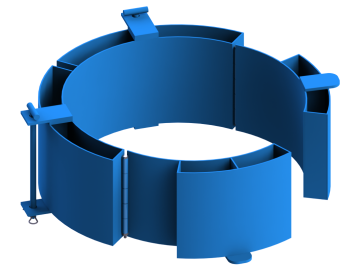

	55/30-19GR Diameter Adapter for 18.5"-19" (47-48.3 cm) drum. ONLY for 185G, 285G, 185GR, 285GR or 300 Series. Measure diameter 1/2-way down drum.
	2836X-P Fully enclosed crate for export of 285, 285HD Series or 201+CP(NO GEK). Crate is heat treated and certified IPPC compliant.
	3900I-P OPTION: Factory Installed MORStop Tilt-Brake on NEW manual tilt model. Auto holds drum tilt angle until you move it.

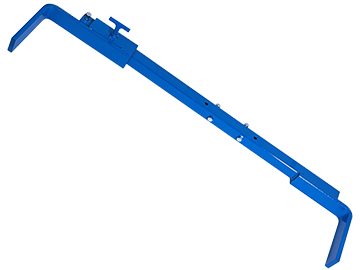

	4556-P KIT: MORCINCH Bracket to prevent RIMLESS or RIMMED plastic drum from slipping. Adjust for 31"-39" tall drum. NOT a complete drum handler.
	C32-285 OPTION, FACTORY INSTALLED 32' LOOP OF PULL CHAIN ON 285 SERIES. (16' DROP)
	C40-285 OPTION, FACTORY INSTALLED 40' LOOP OF PULL CHAIN ON 285 SERIES. (20' DROP).
	X02-285 OPTION: Factory Installed 9" hand crank on NEW model 285A, 285G, 285A-HD or 285G-HD. Replaces pull chain drum tilt control.
	X03-285 OPTION: Factory installed 16" Diameter hand wheel on NEW model 285A, 285G, 285A-HD or 285G-HD. Replaces pull chain tilt control.
	2162KIT-P Kit: Safety Chain Anchor for 285 Series. Customer to bolt on or weld to cross tube of Forklift-Karrier.

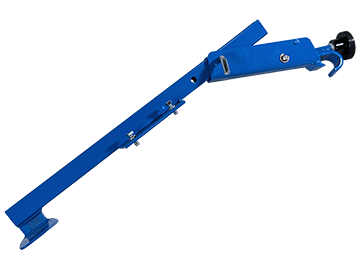

	4560B-P KIT: MORCINCH Top Rim Clamp to prevent a RIMMED plastic or fiber drum from slipping. Adjust for RIMMED 30 to 55 gallon drum.
	4905I-P OPTION: Factory Installed 1/4" Thick Neoprene Liner on NEW 5000G-P 3-piece drum holder

RP285-03.01

Optional Kit: Recommended Spare Parts for model 285G with serial number 0209 to ____. (Click image for list of parts)

4-digit serial numbers are simply the month & year of manufacture.
Example: 1120 is November 2020

1Spec Sheet

1Certificate of Compliance

7Operators Manuals and Parts Diagrams

Parts Diagram

Serial range

3-Piece Drum Holder

0616 - Current

Forklift-Karrier

0616 - Current

Power Train Components

0617 - Current

Operators Manuals and Parts Diagrams

Serial range

CE Declaration of Conformity

400000 - Current

Operators Manual

Serial range

Forklift-Karrier

0616 - Current

Operators Manual and Parts Diagram

Serial range

Forklift-Karrier

0209 - 0516

0793 - 0109

2Recommended Spare Parts Kit

Recommended Spare Parts Kit

Serial range

Recommended Spare Parts Kit

0616 - Current

RP285-03 Recommended Spare Parts Kit for 285G

0793 - 0109

Specifications

Full capacity	800 Lb. (363.20 kg)
Half capacity	500 Lb. (227.00 kg) Half-full capacity is an indication of the capacity for an unbalanced, bottom-heavy drum. A partially full drum with an unbalanced and shifting load is harder to tilt than a full drum.
