611-115


Some items have Special Edition Morse 100th Anniversary *GOLD* Finish.

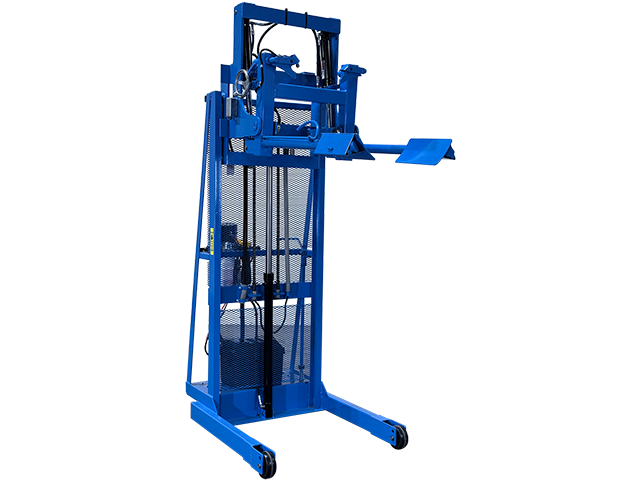

MORStak Drum Racker to rack a rimmed 55-gallon (210 liter) steel or plastic drum up to 56" (142 cm) high. Has 12V battery power lift and tilt.


611-115

Specific to model 611-115...
  • Model 611-115 has 12V battery DC power drum lift and tilt
  • Includes battery and charger
  • Single-Stage Frame with maximum racking height of 56" (142 cm)
  • 61" (155 cm) Turning Radius
All MORStak Drum Rackers - Rack Up to 8.5' High...
  • SAFETY CONSCIOUS Drum Racker to eliminate dangerous bare fork drum handling
  • Rack a RIMMED 55-gallon (210 Liter) steel or plastic drums side-by-side with virtually zero clearance
  • Rack a drum in HORIZONTAL position
  • Rack drum with faucet in place
  • Has powered drum lift and tilt control
REQUEST QUOTE CLICK TO CALL

General

Full Capacity

800 Lb. (363.2 kg)

Shipping information

Ship length74" (187.96 cm)
Ship width48" (121.92 cm)
Ship height82" (208.28 cm)
Ship weight785 Lb. (356.39 kg)
Ship class150
sticky note 4-digit serial numbers are simply the month & year of manufacture.
Example: 1120 is November 2020

Spec Sheet

Click a serial range to download.
Document
Serial range
611 & 620 Series Drum Rackers

Certificate of Compliance

Click a serial range to download.
Document
Serial range
611 Series Certificate of Compliance

Click a serial range to download.
Document
Serial range
611-115 & 620-115 Hydraulic Schematic

Click a serial range to download.
Document
Serial range
NOCO Premium Plus Automatic Transmission fluid
Material Safety data sheet

388-P Battery Safety Data Sheet

Click a serial range to download.
Document
Serial range
Battery Charger
Operators Manual

Battery Charging Information
Operators Manual

CE Declaration of Conformity - 611
Operators Manual

MORStak Drum Racker
Operators Manual

Hydraulic Power Pack
Operators Manual and Parts Diagram

Base Assembly
Parts Diagram

Hydraulic Lift Cylinder
Parts Diagram

Hydraulic Power Pack
Parts Diagram

Hydraulic Tilt Cylinder
Parts Diagram

Yoke / Carriage Assembly
Parts Diagram

Recommended Spare Parts Kit

Click a serial range to download.
Document
Serial range
4418-P Hydraulic Tilt Cylinder
Recommended Spare Parts Kit

Wiring Diagram

Click a serial range to download.
Document
Serial range
611-115 & 620-115 Electrical Schematic
4173X-P thumbnail image 4173X-P

Fully Enclosed Crate for export of 1 of 515, 525, 611 or 620 Series. Crate is heat treated and certified IPPC compliant.

EB

OPTION: Factory Installed sealed 12V battery on NEW drum handler for export shipment

EC thumbnail image EC

OPTION: Battery Charger for single-phase 240V 50Hz/60Hz power supply with NEW drum handler. Customer must provide correct plug.

GB thumbnail image GB

OPTION: Factory Installed Green Battery on NEW drum handler. Environmentally friendly lithium-ion battery with up to 5 year design life.

NB

OPTION: NO Battery on NEW drum handler. End user to install battery before use... Group size 27 12V deep cycle.

NC

OPTION: No Charger. Customer must obtain 12V charger.

PB

OPTION: Factory Installed premium 12V battery on NEW drum handler

TB-600

OPTION: Factory Installed extra battery and charger on NEW 600 Series MORStak Drum Racker to double duty cycle

TPB-600

OPTION: Factory Installed 2 premium batteries and 2 chargers on 600 Series MORStak Drum Racker. Doubles duty cycle.

6659-P

SEAL KIT FOR 1-1/2" CLYINDER

6748-P

KIT, SEAL, 2" CYL, 5522K-P

FGO

OPTION: Factory Installed 1-Gallon of Food Grade Hydraulic Oil

California Proposition 65 Information


...
WARNING: This product can expose you to chemicals including barium sulfate, cobalt, titanium dioxide, and 2-methylimidazole, which are known to the State of California to cause cancer, and bisphenol-A, which is known to the State of California to cause birth defects or other reproductive harm.
...
WARNING: This product can expose you to chemicals including lead and arsenic, which are known to the State of California to cause cancer and birth defects or other reproductive harm.

For more information go to www.P65Warnings.ca.gov
