201 Series Portable 55-Gallon Drum Rollers

Images of Morse Portable Drum Mixers

Portable 55-gallon drum mixers  -  Industrial Barrel Mixers

Portable Drum Mixers

Fixed Speed Drum Roller
Portable Drum Roller - Model 201/20-1 shown
Fixed Speed Portable Drum Roller - Model 201/20-1 shown
rolls a 55-gallon (210 liter) drum on its side at 20 RPM to mix the contents.
Variable Speed Drum Roller
Variable Speed Portable Drum Roller
Variable Speed Portable Drum Roller - Model 201VS-1
rolls a 55-gallon (210 liter) drum at speeds from 15 to 24 RPM
Improved kick stand on Morse Portable Drum Rollers
The new kick stand design is easier to deploy and
better supports the drum roller in upright position

Load drum onto drum mixer with a drum truck
Load an upright drum onto the base plate of the portable 55-gallon
drum mixer with a drum truck, or with your crane and a drum lifter
Improved Top Rim Hook
The improved Top Rim Hook engages the upper rim
of the drum to help pull it over to rolling position

Load drum onto Portable Drum Mixer
Morse Portable 55-gallon drum mixers have a built-in retractable tipping lever
to assist in loading an upright drum, tilt it, and lay it onto the wheels to roll.
Dispense into a 5-gallon pail with drum on a Portable Drum Mixer
Once drum mixing is complete, you can dispense directly into a 5-gallon pail.
Roll a drum with a closed faucet in place on the barrel mixer.

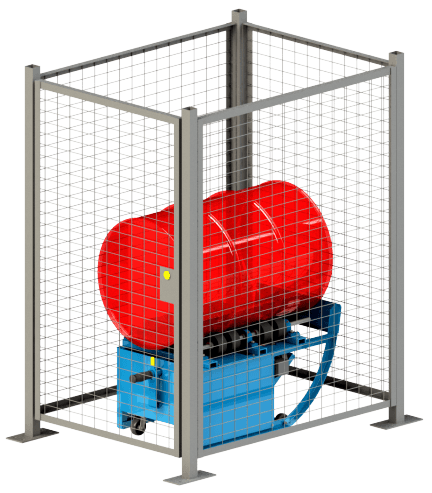

Guard Enclosure Kit with Safety Interlock
to Meet OSHA Requirements
(Sold Separately)
Enclosure with Safety Interlock for use with Morse Portable Drum Roller
Enclosure with Safety Interlock for use with Morse Portable Drum Roller

Note: OSHA Requirement for enclosure with safety interlock IMPORTANT - OSHA holds the employer responsible for the suitability of design and application of tools and machinery.
Install all Morse Rotators in accordance with requirements for enclosure and safety interlock, etc. One way to accomplish this is with a Morse enclosure with safety interlock, so the rotator automatically turns off when enclosure door is opened. Power connections and motor controls must also comply with applicable local codes.

For OSHA compliance in the USA, see OSHA subpart O.1910.212(a)(4) "Barrels, containers, and drums. Revolving drums, barrels, and containers shall be guarded by an enclosure which is interlocked with the drive mechanism, so that the barrel, drum, or container cannot revolve unless the guard enclosure is in place."


Options for Portable Drum Rollers

Option # 1-5P  -  Idler Attachment to Roll a 5-Gallon (20 liter) Pail

Option 1-5P Idler Attachment to roll a 5-gallon pail
Idler Attachment (Option # 1-5P) bolts on between the wheels of the drum roller.
It allows rolling a 1 to 5 gallon pail on your Morse portable drum mixer.

Option # POLY-201  -  To Roll a Plastic Drum on a Portable Drum Mixer

Option POLY-201 to roll a 55-gallon plastic drum on a portable drum mixer

Portable drum mixer shown with (Option # POLY-201) to roll a 55-gallon (210 liter) plastic drum.

Option POLY-201 includes:

  • Extra wheels to support flexible plastic drum sidewall.
  • End stop to prevent rimless plastic drum from travelling lengthways while being rolled.
  • Chain to wrap around drum to assist in tipping an upright drum over onto the drum mixer.
    Note: Remove chain from around drum while rolling.
Custom Stainless Steel Portable Drum Roller
Custom stainless steel portable drum mixer
Custom portable 55-gallon drum mixer made of type 304 stainless steel
Portable Drum Mixers



Portable drum mixers  -  Morse portable drum rollers  -  Barrel mixers


Last Updated: 06/18/19
