Images of MORStak TM Fork Mounted Drum Racker - Model 289F

MORStak TM Fork Mounted Drum Racker



product page

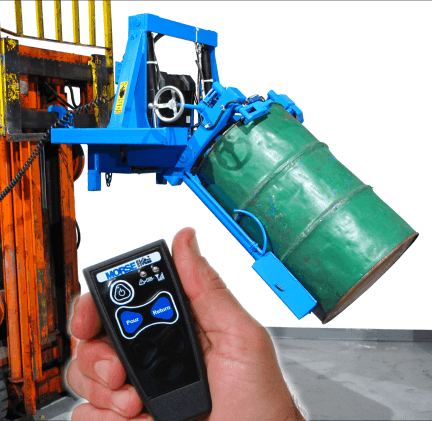

Fork-Mounted Drum Racker with Wireless Tilt Control Option
Fork-Mounted Drum Racker
shown with Wireless Tilt Control Option # 4804i-P

Fork mounted drum racker
With Model 289F MORStak TM Fork Mounted Drum Racker in place on your forklift, you can rack
a drum with your forklift. Rack drums side by side with virtually zero clearance between them.

Clamp drum into holder
Manually clamp an upright drum into the holder, then lift and tilt it to horizontal position.

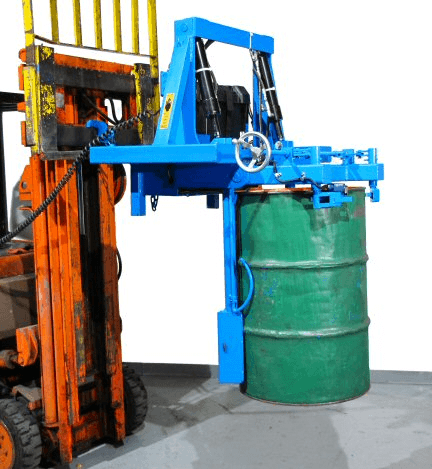

Fork Mounted Drum Racker lifting drum
You can lift your upright drum from the floor or off a pallet.

MORStak Fork Mounted Drum Racker

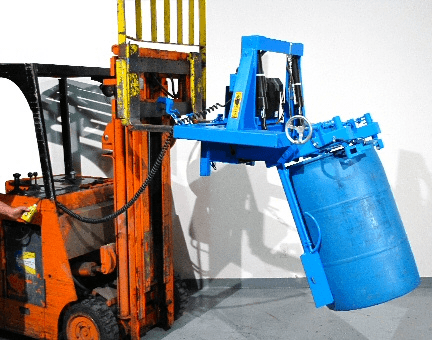

Tilt the drum to racking position - raise and tilt your rimmed 55-gallon (210 Liter) plastic or steel
drum to horizontal position. Then transport the drum to the rack with your forklift.

MORStak Fork Mount Drum Racker

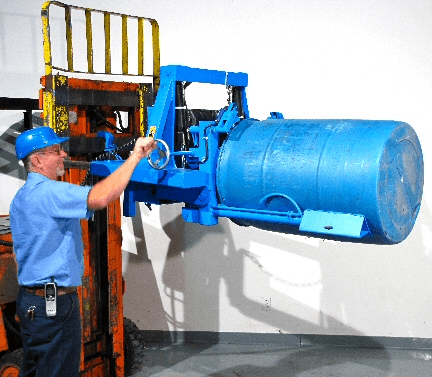

Before placing your drum into the rack, release the clamp.

After removing your drum from a rack with the MORStak TM Fork Mounted
Drum Racker, secure the clamp before tilting the drum back to upright position.

This fork mounted drum racker allows fork truck operator
to lift, tilt and rack a drum weighing up to 800 Lb. (363 kg)

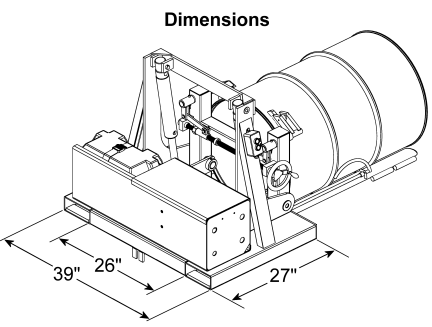

Dimensions of Morse Forklift-Karriers
Requires 26" (66 cm) between forks as fork pocket openings are 26" (66 cm) apart.
Each opening measures 2.5" (6.35 cm) high by 6.5" (16.5 cm) wide.

product page

MORStak TM Fork Mounted Drum Racker - Forklift Mounted Drum Racker - Model 289F
