Can Tumbler page

305 Series

 Images of Morse Morse PailPRO Logo - Trade MarkCan Tumblers
to Mix Contents of 1 to 5 Gallon Can or Pail

Morse Can Tumblers for 1 to 5 gallon cans or pails

Can Tumbler for a single 1 to 5 gallon can
Model 1-305-1 can tumbler. Pail mixer to blend ingredients inside a single sealed can.

Can Tumbler for 1 or 2 cans at a time
Model 2-305-1 can tumbler. Pail mixer for 1 or 2 sealed cans at a time.

Double Can Tumbler with rotating a 1-gallon can and a 5-gallon can
Double Can Tumbler with rotating a 1-gallon can and a 5-gallon can



Guard Enclosure Kit (sold separately)
shown installed on Single Can Tumbler

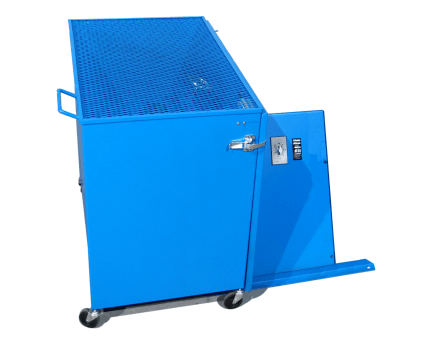

Enclosure with Safety Interlock for Single Can Tumbler
Guard Enclosure Kit # GEK-1-305-1 shown installed with Single Can Tumbler model # 1-305-1

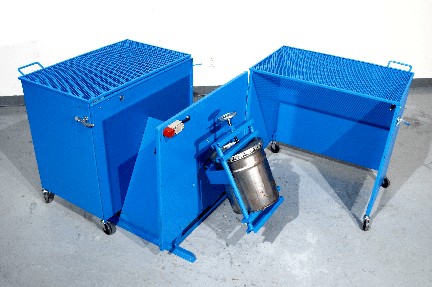

Enclosure with safety interlock for Morse Double Can Tumbler
Guard Enclosure Kit # GEK-2-305-1 shown installed with Double Can Tumbler model # 2-305-1

Note: OSHA Requirement for enclosure with safety interlock IMPORTANT - OSHA holds the employer responsible for the suitability of design and application of tools and machinery.
Install all Morse Rotators in accordance with requirements for enclosure and safety interlock, etc. One way to accomplish this is with a Morse enclosure with safety interlock, so the rotator automatically turns off when enclosure door is opened. Power connections and motor controls must also comply with applicable local codes.

For OSHA compliance in the USA, see OSHA subpart O.1910.212(a)(4) "Barrels, containers, and drums. Revolving drums, barrels, and containers shall be guarded by an enclosure which is interlocked with the drive mechanism, so that the barrel, drum, or container cannot revolve unless the guard enclosure is in place."

Options for Morse Can Tumblers
Options to Tumble a Larger Can include a raised base and larger can holder(s) to accommodate a can:
  • Up to 16" (40.6 cm) diameter
  • 11" to 22" (28 to 55.9 cm) tall
  • Capacity: 100 Lb. (45.5 kg) per can

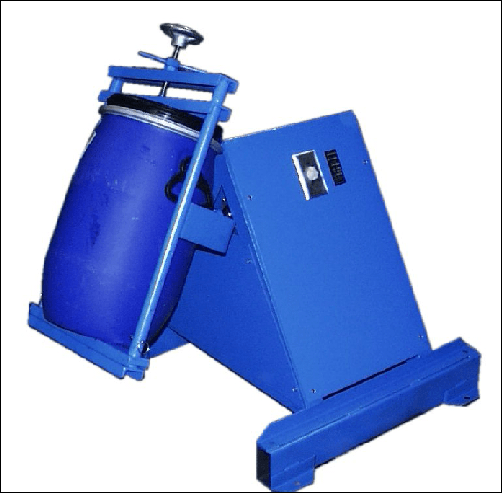

Option to Tumble a Larger Can on Single Can Tumbler
Single Can Tumbler shown with Option XLC-1-305 for a larger can
Option to Tumble Larger Cans on Double Can Tumbler
Double Can Tumbler shown with option XLC-2-305 to mix larger cans



back to can tumbler page

Morse Can Tumblers accept 1 to 5 gallon cans or pails. You can tumble small batches with to mix ingredients or deburr contents.
