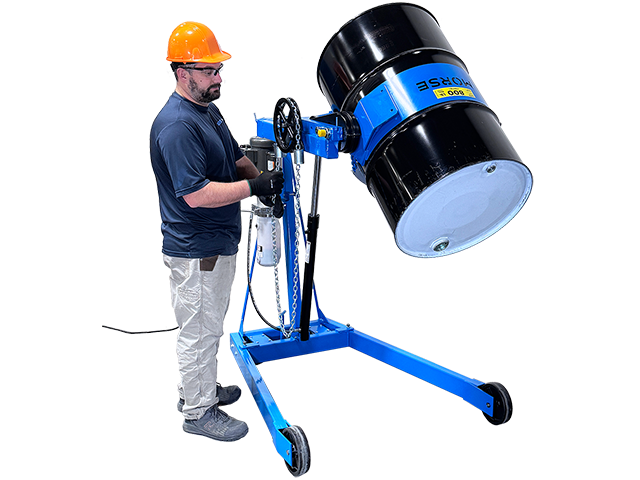

400A-72-120

Hydra-Lift Karrier to lift, move and pour a drum up to 72" (183 cm) high. Electric power drum lift. Manual Pull Chain tilt control.

400A-72-120

Specific to model 400A-72-120...
  • Model 400A-72-120 has 60Hz Electric power drum lift, but Pull Chain manual drum tilt
    • Hold momentary switch to raise drum
    • Pull Chain controlled drum tilt
    • Manual release valve lowers drum
  • Pour drum at up to 72" (183 cm) high
  • NOT for use in hazardous areas
  • We recommend the MORStopTM Tilt-Brake Option to automatically lock drum tilt angle until operator turns it
All Hydra-Lift Drum Karriers...
  • Hydra-Lift Karriers Lift, Move and Dispense a drum
  • Rotate drum 360 degrees forward and back to dispense into vat, hopper, mixer or other container
  • MORCINCHTM Drum Handling System
    • Drum Holder Automatically adjusts for 22" to 23.5" (56 to 59.7 cm) diameter drum
    • Install correct MORCINCHTM Kit to handle plastic or fiber drum
    • Insert correct size Diameter Adapter for each smaller drum
REQUEST QUOTE CLICK TO CALL

General

Full Capacity800 Lb. (363.2 kg)
Half-full Capacity500 Lb. (227 kg)

Half-full capacity is an indication of the capacity for an unbalanced, bottom-heavy drum. A partially full drum with an unbalanced and shifting load is harder to tilt than a full drum.
Dispense height72.0" (182.88 cm)
Lift stylePower lift
Tilt styleManual tilt

Motor information

Phase1
HP1.00
StyleTEFC (Totally enclosed fan cooled)
Explosion proof No
Frequency60Hz
Voltage / Amp draw115v / 11.8

Shipping dimensions

Ship length67" (170.18 cm)
Ship width48" (121.92 cm)
Ship height60" (152.4 cm)
Ship weight374 Lb. (169.796 kg)
Ship class150
4-digit serial numbers are simply the month & year of manufacture.
Example: 1120 is November 2020

55/30-14.5 thumbnail image 55/30-14.5

Diameter Adapter for 14" to 14.5" (35.6 to 36.8 cm) diameter drum.IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
55/30-16 thumbnail image 55/30-16

Diameter Adapter for 15.5" to 16" (39.4 to 40.6 cm) diameter drum.IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
55/30-17.5 thumbnail image 55/30-17.5

Diameter Adapter for 17" to 17.5" (43.2 to 44.5 cm) diameter drum.IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
55/30-19 thumbnail image 55/30-19

Diameter Adapter for 18.5" to 19" (47 to 48.3 cm) diameter drum.IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
55/30-20.5 thumbnail image 55/30-20.5

Diameter Adapter for 20" to 20.5" (50.8 to 52.1 cm) diameter drum.IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
3900I-P thumbnail image 3900I-P

OPTION: Factory Installed MORStop Tilt-Brake on NEW manual tilt drum handler. Auto holds drum tilt angle until you move it.
4556-P thumbnail image 4556-P

Kit: Bracket to prevent plastic or fiber drum from slipping length-ways
X02-400-72 thumbnail image X02-400-72

OPTION: Factory Installed 9" hand crank on NEW 400A-72 Series. Replaces pull chain drum tilt control.
X03-400-72 thumbnail image X03-400-72

OPTION: Factory Installed 16" diameter hand wheel on NEW 400A-72 Series. Replaces pull chain drum tilt control.
55/30-32G thumbnail image 55/30-32G

Diameter Adapter for 32-Gallon (121 liter) Rubbermaid Brute Model 2632. Engages under handles of Rubbermaid Brute. Has integrated top brackets to prevent Brute from slipping when tilted.
55/30-44G thumbnail image 55/30-44G

Diameter Adapter for 44-Gallon (167 liter) Rubbermaid Brute Model 2643. Engages under handles of Rubbermaid Brute. Has integrated top brackets to prevent Brute from slipping when tilted.
2386I-P thumbnail image 2386I-P

OPTION: Factory Installed Step Down Floor Lock on NEW 400 or 405 Series
2841X-P thumbnail image 2841X-P

Fully Enclosed Crate for export of 1 of 400A-60 or 400A-72 Series set up. Crate is heat treated and certified IPPC compliant.
4556C-P thumbnail image 4556C-P

Kit: MORCINCH Bracket Assembly for use with Drum Cone attached to drum. Prevents drum from slipping lengthways in the drum holder.
4560B-P thumbnail image 4560B-P

KIT: MORCINCH Top Rim Clamp to prevent a RIMMED plastic or fiber drum from slipping
4904I-P

OPTION: Factory Installed 1/4" Thick Neoprene Liner on NEW 5000-P MORCINCH drum holder
5115I-P thumbnail image 5115I-P

OPTION: Factory Installed 2" x 3' (5 x 91 cm) Web Strap and Ratchet on NEW MORCINCH Drum Holder. Replaces cinch chain around drum. NOT for spark resistant model.
6388-P

Adapter for use with 4556-P Bracket Assembly in order to handle 55 gallon Rubbermaid Brute 2655
FGO

OPTION: Factory Installed 1-Gallon of Food Grade Hydraulic Oil
G-400 thumbnail image G-400

OPTION: Factory Installed 3-Piece Drum Holder on NEW 400 or 500 Series drum handler
NMW-400

OPTION: Factory Installed non-marking wheels on NEW 400 Series Hydra-Lift Karrier

California Proposition 65 Information

...
WARNING: This product can expose you to chemicals including barium sulfate, cobalt, titanium dioxide, and 2-methylimidazole, which are known to the State of California to cause cancer, and bisphenol-A, which is known to the State of California to cause birth defects or other reproductive harm.

For more information go to www.P65Warnings.ca.gov

Popular Options

View all options
4556-P thumbnail image
4556-P

Kit: Bracket to prevent plastic or fiber drum from slipping length-ways

3900I-P thumbnail image
3900I-P

OPTION: Factory Installed MORStop Tilt-Brake on NEW manual tilt drum handler. Auto holds drum tilt angle until you move it.

4560B-P thumbnail image
4560B-P

KIT: MORCINCH Top Rim Clamp to prevent a RIMMED plastic or fiber drum from slipping

55/30-19 thumbnail image
55/30-19

Diameter Adapter for 18.5" to 19" (47 to 48.3 cm) diameter drum.
IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.

QUICK QUOTE

Recomended Spare Parts Kits

RP400-11.02 thumbnail image
RP400-11.02

Optional Kit: Recommended Spare Parts for model 400A-72-120 with serial number 1013 to ____. (Click image for list of parts)
