456-3-50-CE


Some items have Special Edition Morse 100th Anniversary *GOLD* Finish.

CE-Marked Hydra-Lift Drum Roller. 3-Phase 400 V 50Hz. Includes Control Box, Enclosure with Safety Interlock and Export Crate.


456-3-50-CE

Specific to model 456-3-50-CE...
  • Model 456-3-50-CE is CE-Marked and Certified
  • ONLY for country with 3-phase 400V 50Hz power supply
  • Adjust drum rotation speed
  • Includes the following as a complete CE-Marked and Certified unit
    • Drum Roller model 456-1-50

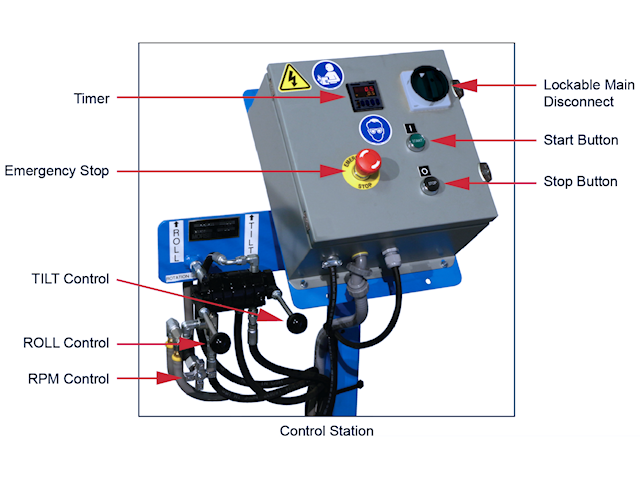

    • Electric Control Package model CP-456-3-400-50
    • Guard Enclosure Kit with Safety Interlock model GEK-456-3
    • Fully enclosed export crate model 5516X-P
All 456 Series Hydra-Lift Drum Rollers...
  • IMPORTANT: OSHA, CSA and EU require enclosure with safety interlock
  • Load upright drum at floor level with drum truck, or with below-hook drum lifter and your crane
  • Hydraulic Power-Tilt drum over onto roller wheels
  • Roll STEEL drum with 6" to 26" (15 to 66 cm) diameter, and maximum 40" (102 cm) length
    • To roll a PLASTIC drum, add Option POLY-456
    • To roll 1-to-5 gallon cylindrical can, install Idler Attachment 1-5-1
  • Maximum ambient operating temperature: 130oF (54oC)
REQUEST QUOTE CLICK TO CALL

General

Drum RPM4 to 14 RPM

RPM is based on 22.5" (57.15 cm) diameter drum.

Liquid Capacity1000 Lb. (454 kg)
Dryload Capacity400 Lb. (181.6 kg)

A shifting dry load exerts greater stress on the drum rotator than the fluid motion of a liquid load.

Motor information

Phase3
HP1.00
StyleTEFC (Totally enclosed fan cooled)
Explosion proof No
Frequency50Hz
Voltage / Amp draw400v / 1.8

Shipping information

Ship length90" (228.6 cm)
Ship width45" (114.3 cm)
Ship height71" (180.34 cm)
Ship weight1444 Lb. (655.576 kg)
Ship class70
sticky note 4-digit serial numbers are simply the month & year of manufacture.
Example: 1120 is November 2020

Click a serial range to download.
Document
Serial range
456 CE-Marked Drum Rollers
Spec Sheet

456 Series Hydra-Lift Drum Rollers
Spec Sheet

Pneumatic / Hydraulic Schematic

Click a serial range to download.
Document
Serial range
456 Series Hydra-Lift Drum Roller
Pneumatic / Hydraulic Schematic

Material Safety data sheet

Click a serial range to download.
Document
Serial range
NOCO Premium Plus Automatic Transmission fluid
Material Safety data sheet

Click a serial range to download.
Document
Serial range
456 Series Control Packages
Operators Manual

456 CE-Marked Hydra-Lift Drum Roller
Operators Manual and Parts Diagram

Enclosure Kit Installation Instructions for CE Rotators
Operators Manual and Parts Diagram

Hydraulic Power Pack
Operators Manual and Parts Diagram

292-P Idler Wheel
Parts Diagram

Hydraulic Cylinder
Parts Diagram

Hydraulic Motor
Parts Diagram

Recommended Spare Parts Kit

Click a serial range to download.
Document
Serial range
RP456-01 Recommended Spare Parts Kit for 456 Series
Recommended Spare Parts Kit

Click a serial range to download.
Document
Serial range
290-3-50-2P Baldor Motor Wiring Diagram
Wiring Diagram

5628-P Control Box
Wiring Diagram
1-5-1 thumbnail image 1-5-1

Idler attachment to roll a 1 to 5 gallon can on a Morse 5154 or 456 Series 55-gallon drum roller

4349-p

KIT, SEAL, 3" CYL, 648-P DF

6349-P

KIT, SEAL, 6318-P, 6319-P

POLY-456 thumbnail image POLY-456

OPTION: Factory Installed on NEW 456 Series to roll PLASTIC drum. Includes 4 Extra wheels and end stop to prevent drum travel. CANNOT order without drum roller.
