185XGR

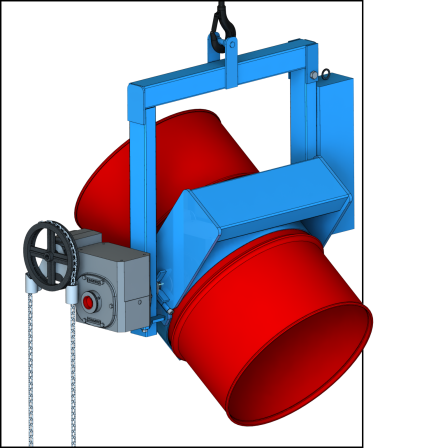

Model 185XGR Super-Duty Kontrol-Karrier Below-Hook Drum Carrier with 2500 Lb. (1134 kg) capacity
185
185 Below-Hook Drum Carriers
Model 185XGR Super-Duty Kontrol-Karrier
Below-Hook Drum Carrier to lift, rotate and pour a 2500 Lb. (1134 kg) drum
3-Piece Drum Holder with Toggle Clamp
Model 185XGR Below-Hook Drum Carrier for up to 2500 Lb. (1134 kg)
Some items have Special Edition Morse 100th Anniversary *GOLD* Finish.
Super-Duty Kontrol-Karrier. Pull chain tilt. Toggle clamp secures 22" (56 cm) dia. steel drum in 3-piece holder. Ships with load test cert.
185XGR
- Model 185XGR has 3-Piece Drum Holder to secure a 22.5" (56 cm) diameter 55-gallon (210 liter) steel drum
- Worm gear speed reducer for drum tilt control with 150:1
- Morse
Kontrol-Karriers provide safety conscious high-level drum pour with your crane - Pull Chain Manual Drum Tilt Control
- Geared drum drum rotation 360o in either direction
- Lift and invert drum with drum faucet in place
- Safety-conscious drum handling by one person
- IMPORTANT: Each Morse below-hook drum handler is individually load tested at the factory at 125% of rated capacity, and ships with Load Test Certificate enclosed
General
| Full Capacity | 2500 Lb. (1135 kg) |
| Half-full Capacity | 1250 Lb. (567.5 kg) Half-full capacity is an indication of the capacity for an unbalanced, bottom-heavy drum. A partially full drum with an unbalanced and shifting load is harder to tilt than a full drum. |
Shipping information
| Ship length | 42" (106.68 cm) |
| Ship width | 42" (106.68 cm) |
| Ship height | 15" (38.1 cm) |
| Ship weight | 264 Lb. (119.856 kg) |
| Ship class | 77.5 |
4-digit serial numbers are simply the month & year of manufacture. Example: 1120 is November 2020
Current |
55/30-19GR Diameter Adapter for 18.5"-19" (47-48.3 cm) drum. ONLY for 185G, 285G, 185GR, 285GR or 300 Series. Measure diameter 1/2-way down drum. |
 |
2998X-P Fully Enclosed Crate for export of 1 of 185GR Series or model 185XGR. Crate is heat treated and certified IPPC compliant. |
 |
X03-185GR OPTION: Factory Installed 10" diameter hand wheel on NEW model 185A-GR. Replaces pull chain drum tilt control. |
 |
5026-P KIT, BOLT-ON BRACKET ASSEMBLY FOR 55-GALLON DRUM. TOP CLAMP AND BOTTOM BRACKET. FITS 185XGR, 285XGR OR DISCONTINUED 300 SERIES. 1250LB CAP. |
| 5026L-P KIT, BOLT-ON BRACKET ASSEMBLY FOR 55-GALLON DRUM. USE IN TANDEM WITH 5026-P. FITS 185XGR, 285XGR OR DISCONTINUED 300 SERIES. 1250LB CAP. |
|
 |
6333-P Fork Pocket Kit: Add fork pockets to below-hook drum lifter |
California Proposition 65 Information
For more information go to www.P65Warnings.ca.gov
Popular Options
View all options
Diameter Adapter for 18.5"-19" (47-48.3 cm) drum. ONLY for 185G, 285G, 185GR, 285GR or 300 Series. Measure diameter 1/2-way down drum.
OPTION: Factory Installed 10" diameter hand wheel on NEW model 185A-GR. Replaces pull chain drum tilt control.
KIT, BOLT-ON BRACKET ASSEMBLY FOR 55-GALLON DRUM. TOP CLAMP AND BOTTOM BRACKET. FITS 185XGR, 285XGR OR DISCONTINUED 300 SERIES. 1250LB CAP.
