Images of Morse Stationary Drum Rollers

Stationary Drum Roller images
product page Morse 55-Gallon Drum Roller
Single Stationary Drum Rollers
roll one drum on its side to mix the contents
Double Stationary Drum Roller - Morse 2-5154 Series
Stationary Double Drum Rollers roll one or two drums at a time.
Custom Stainless Steel Drum Rollers
Stainless Steel Single Drum Roller
Custom Stainless Steel Stationary Drum Roller
with frame made of type 304 stainless steel.
Welds are not ground or polished. Motor, gear box,
coupling and bearings are not stainless steel.

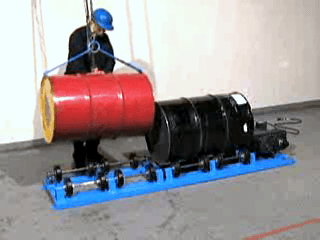

Load Drum Roller with model 41 Drum Lifting Hook
Load a Stationary Drum Roller using your hoist or crane with model 41 Drum Lifting Hook (shown) or with model 42 Heavy-Duty Drum Lifter
Load drum onto Drum Roller with a MORStack Drum Racker
Load one drum onto the open end of your Stationary
Drum Roller with a MORStack Drum Racker

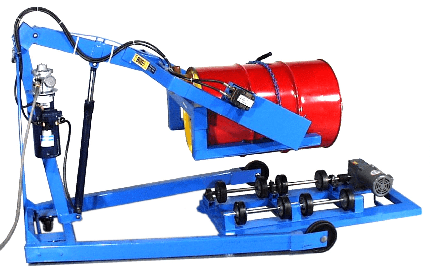

You can use an Omni-Lift Drum Racker to load your drum onto a Stationary Drum Roller
You can also use an Omni-Lift Drum Racker loading drum onto Stationary Drum Roller
Control Packages for Stationary Drum Rollers
(Sold Separately)

Morse Control Packages
Include a Control Mast and the appropriate Control Box for each model. Use power controls to start and stop drum tumbling. The control mast can be positioned outside the safety enclosure on either the left or right side, or at the back of Drum Roller.

Control Mast and AC Control Box
for Model 1-5154-1 or 2-5154-1
NEMA 4/12 for NON Hazardous Areas
Control Box included in Control Package

Includes Control Mast and Control Box with:
  • Fixed Drum Rotation Speed at 20 RPM
  • Timer adjusts from a few seconds to 16 hours
  • Start and Stop Buttons
  • Red Emergency Stop Button
  • Lockable Main Disconnect to shut off
    and lock out power to the unit
  • Wire terminals for external connection of
    safety interlock switch

Control Mast and AC Control Box
for Model 1-5154-3 or 2-5154-3
NEMA 4/12 for NON Hazardous Areas
Control Box included in Control Package

Includes Control Mast and Control Box with:
  • Variable Speed - Control drum rotation from 1 to 30 RPM
  • Timer adjusts from a few seconds to 16 hours
  • Start and Stop Buttons
  • Red Emergency Stop Button
  • Lockable Main Disconnect to shut off and lock out power to the unit
  • Wire terminals for external connection of safety interlock switch

Control Mast and Explosion-Proof AC Control Box
NEMA 7/9 for Hazardous Areas
Controls for Explosion-Proof Models

Includes Control Mast and Explosion-Proof Control Box with:
  • Fixed Drum Rotation Speed at 20 RPM
    (16 RPM on 50Hz models)
  • Start and stop buttons
  • Wire terminals for external safety interlock
Guard Enclosure Kits with Safety Interlock
(Sold Separately)

Enclosures with Safety Interlock
to Meet OSHA Requirements

Enclosure with safety interlock automatically shuts off the drum roller when the door is opened.

Morse Enclosure Kits with Safety Interlock are sold separately.


Note: OSHA Requirement for enclosure with safety interlock IMPORTANT - OSHA holds the employer responsible for the suitability of design and application of tools and machinery.
Install all Morse Rotators in accordance with requirements for enclosure and safety interlock, etc. One way to accomplish this is with a Morse enclosure with safety interlock, so the rotator automatically turns off when enclosure door is opened. Power connections and motor controls must also comply with applicable local codes.

For OSHA compliance in the USA, see OSHA subpart O.1910.212(a)(4) "Barrels, containers, and drums. Revolving drums, barrels, and containers shall be guarded by an enclosure which is interlocked with the drive mechanism, so that the barrel, drum, or container cannot revolve unless the guard enclosure is in place."

Safety Enclosure for Stationary Drum Roller
Options

Option # POLY-1-5154
Roll a 55-gallon plastic drum on your stationary drum roller with Option POLY-1-5154


Stationary drum roller shown with Option POLY-1-5154 to roll a 55-gallon plastic drum.
It adds extra wheels and end stops to prevent the drum from traveling lengthways while being rolled.
Option POLY-2-5154 is also available for double stationary drum rollers.

Option # 1-5-1
Optional Idler Attachment to roll 1 to 5 gallon pails - Option 1-5-1

Idler Attachment (Option 1-5-1) to roll a 1 to 5 gallon pail on Morse Stationary Drum Rollers.

product page
