Morse 290F GRIP+GO Power-Grip Fork Mount Drum Handler tilting a black steel drum to pour liquid into another drum.

Model 290F Power-Grip Forklift Drum Handler - Drum Gripper

Morse Model 290F GRIP+GO Power-Grip Fork Mount Drum Handler.

Model 290F Power-Grip Forklift Drum Handler

Morse 290F GRIP+GO Forklift Drum Handler placing a drum onto a pallet beside another drum, demonstrating precise drum handling and positioning.

Model 290F Power-Grip Forklift Drum Handler

Operator using a Raymond forklift with a Morse 290F GRIP+GO Power-Grip Fork Mount Drum Handler to pour liquid from a black steel drum into another drum.

Model 290F Power-Grip Forklift Drum Handler

Morse 290F GRIP+GO Forklift Drum Handler positioning a drum onto or lifting a drum from a Morse Drum Roller 201, showcasing seamless drum handling compatibility.

Model 290F Power-Grip Forklift Drum Handler

Close-up of control pendant for Morse Model 290F Drum Handler.

Model 290F - Close-up of control pendant

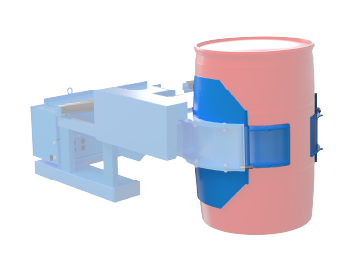

Model 290F equipped with Grip Pad Kit 6172XL-P handling a fiber drum.

Install Grip Pad Kit REQUIRED for model 290F to handle a plastic or fiber drum

290F with Grip Pad Kit 6172XL-P to pour fiber or plastic drum

Morse 290F GRIP+GO Forklift Drum Handler securely tilting a plastic drum to dispense liquid into a black steel drum.

Model 290F shown with Grip Pad Kit REQUIRED to handle a plastic or fiber drum

Wireless Remote 6148T-P for Morse Model 290F Drum Handler.

Operator using a wireless remote to control the Morse 290F GRIP+GO Forklift Drum Handler, safely dumping a drum into a container.

Model 290F shown with Wireless Remote Option

Camera mounted on Model 290F for monitoring drum dispensing from forklift.

Camera mounted on Morse model 290F to view dispensing on monitor in forklift

Model 290F shown with Grip Pad Kit, and Camera Option to see as you pour a drum

Model 290F

GRIP+GO Fork Mount Drum Handler. 12V DC Power Grip & Tilt to invert drum. REQUIRES 25"(63.5cm) between forks. Includes battery and charger.

All about Model 290F

Specific to Model 290F

GRIP+GO^TM Power-Grip Forklift Drum Handler
Power GRIP & TILT: Self-contained 12V DC
Fully Invert Drum: Turn 180° to empty contents
Drum Tilt Direction: Forward
Tilt Control: Battery Power with pendant
Available with factory installed Option # 6149i-P wireless tilt control
Drum Sizes: 14" to 24" (35.6 to 61 cm) diameter. Typical 15-gallon to 55-gallon (55 to 210 liter)
Drum Types: Steel drum
Plastic or fiber drum REQUIRES Grip Pad Kit # 6172XL-P
- Plastic drums always deform when gripping, which REQUIRES operator to further tighten grip during pouring
- Model 290F is NEVER recommended for plastic or fiber drum with lid removed
For wooden barrel, install Grip Pad Kit # 6172XL-P
Distance Required Between Forks: 25" (63.5 cm)

All Morse GRIP+GO Power-Grip Fork Mount Drum Handler

	EB OPTION: Factory installed SEALED 12V battery on NEW drum handler for export shipment
	EC OPTION: Battery Charger for single-phase 240V 50Hz/60Hz power supply with NEW drum handler. Customer must provide correct plug.
	GB OPTION: Factory Installed Green Battery on NEW drum handler. Environmentally friendly lithium-ion battery with up to 5 yr. design life.
	NB OPTION: NO Battery on NEW drum handler. End user to install battery before use... Group size 27 12V deep cycle.
	NC OPTION: No Charger. Customer must obtain 12V charger.
	PB OPTION: Factory Installed Premium 12V Battery on NEW drum handler
	6149I-P OPTION: Factory Installed Wireless Tilt Control on NEW model 290F
	6172XLI-P OPTION: Factory Installed drum pads to handle plastic or fiber drum or to handle wooden barrel.
	6189Xi-P Fully enclosed crate REQUIRED for export of 290F. Crate is heat treated and certified IPPC compliant.
	6320I-P OPTION: Factory Installed camera video aid on NEW model 290F
	6748-P KIT, SEAL, 2" CYL, 5522K-P
	6749-P KIT, SEAL, 2" CYL, 5824K-P
	6978I-P OPTION: Factory Installed drum pads to handle plastic or fiber drum.
	FGO OPTION: Factory Installed 1-Gallon of Food Grade Hydraulic Oil

RP290F-1

KIT, SPARE PARTS, 290F

4-digit serial numbers are simply the month & year of manufacture.
Example: 1120 is November 2020

1Spec Sheet

1Certificate of Compliance

1Pneumatic / Hydraulic Schematic

2Wiring Diagram

Wiring Diagram

Serial range

290F Pendant Control

291995 - Current

290F Wireless Remote Control

291995 - Current

2Material Safety data sheet

Material Safety data sheet

Serial range

388-P Battery Safety Data Sheet

0419 - Current

NOCO Premium Plus Automatic Transmission fluid

0000 - Current

16Operators Manuals and Parts Diagrams

Operators Manual

Serial range

Battery Charger

0616 - Current

0306 - 0516

Battery Charging Information

0000 - Current

CE Declaration of Conformity

400000 - Current

Fork-Mount Drum Handler

417374 - Current

Hydraulic Power Pack

291577 - Current

Parts Diagram

Serial range

Drum Grab Assembly

426424 - Current

417374 - 426423

Fork-Mount Drum Handler

417374 - Current

Hydraulic Power Pack

291577 - Current

Hydraulic Tilt Cylinder

409160 - Current

1021 - 0623

0413 - 0623

OPTION: Drum Grip Pad Kit

314825 - Current

291995 - 314824

Operators Manual and Parts Diagram

Serial range

Fork-Mount Drum Handler

291995 - 417373

1Recommended Spare Parts Kit

290F Pour Fiber Drum Video
Click to play

290F Video
Click to play

Specifications

Full capacity

1500 Lb. (681.00 kg)
