400A-72SS-125
Stainless Steel Hydra-Lift Karrier with AC Power lift, and Manual drum tilt control
Model 400A-96SS-125 shown - Stainless Steel Hydra-Lift Drum Carrier with Electric power drum lift, and Pull Chain manual drum tilt control.
Battery Power Lift and Lower Controls
Model 400A-96SS-125 shown - Stainless Steel Hydra-Lift Drum Carrier with battery power drum lift and pull chain drum tilt.

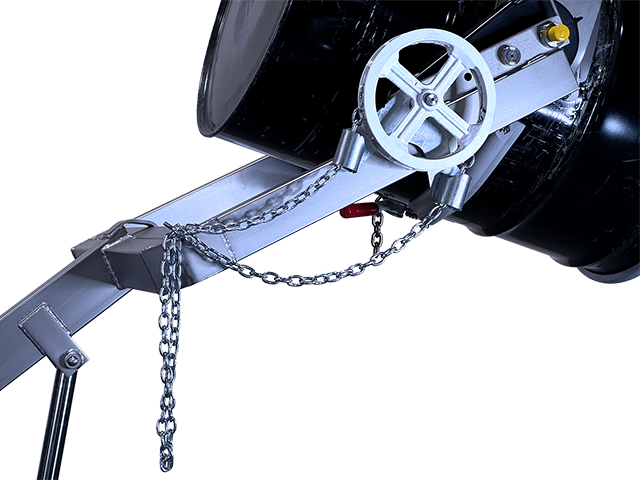

Manual Chain Wheel and Pull Chain to Turn Drum
Some items have Special Edition Morse 100th Anniversary *GOLD* Finish.
Stainless Steel Hydra-Lift Karrier. 72"(183cm) pour. 12V Battery power lift. Pull chain tilt. Includes battery & charger. Welds NOT ground
400A-72SS-125
- Model 400A-72SS-125 has frame made of bead blast finished type 304 stainless steel
- Welds are NOT ground smooth or polished
- Some parts are NOT stainless, such as ratchet, pawl, chain wheel, pull chain, wheels, motor and hydraulics
- Gears and sprockets are NOT stainless, but are covered with guards
- Has 12V battery DC power lift, but Pull Chain manual drum tilt
- Operate battery power controls to raise and lower drum
- Pull Chain controlled drum tilt
- Dispense at up to 72" (183 cm) high
- NOT for use in hazardous areas
- Includes battery and charger
- We recommend the
MORStopTM Tilt-Brake Option to automatically lock drum tilt angle, until the operator turns it
Hydra-Lift Karriers Lift, Move and Dispense a drum- Rotate drum 360 degrees forward and back to dispense into vat, hopper, mixer or other container
- MORCINCHTM Drum Handling System
- Drum Holder Automatically adjusts for 22" to 23.5" (56 to 59.7 cm) diameter drum
- Install correct MORCINCHTM Kit to handle plastic or fiber drum
- Insert correct size Diameter Adapter for each smaller drum
General
| Full Capacity | 800 Lb. (363.20 kg) |
| Half-full Capacity | 500 Lb. (227.00 kg)
Half-full capacity is an indication of the capacity for an unbalanced, bottom-heavy drum. A partially full drum with an unbalanced and shifting load is harder to tilt than a full drum. |
| Dispense height | 72.0" (182.88 cm) |
| Lift style | Power lift |
| Tilt style | Manual tilt |
Shipping information
| Ship length | 67" (170.18 cm) |
| Ship width | 48" (121.92 cm) |
| Ship height | 60" (152.4 cm) |
| Ship weight | 392 Lb. (177.97 kg) |
| Ship class | 150 |
4-digit serial numbers are simply the month & year of manufacture. Example: 1120 is November 2020
Current
|
2841X-P
Fully enclosed crate for export of 72" 400 Series set up. Crate is heat treated and certified IPPC compliant. |
|
55/30SS-14.5
Stainless Steel Adapter for 14-14.5" (35.6-36.8 cm) dia. drum. Brackets for up to 38" (96.5 cm) tall drum. Measure diameter 1/2-way down drum. |
|
|
55/30SS-16
Stainless Steel Adapter for 15.5-16" (39.4-40.6 cm) dia. drum. Brackets for up to 38" (96.5 cm) tall drum. Measure diameter 1/2-way down drum. |
|
|
55/30SS-17.5
Stainless Steel Adapter for 17-17.5" (43.2-44.5 cm) dia. drum. Brackets for up to 38" (96.5 cm) tall drum. Measure diameter 1/2-way down drum. |
|
55/30SS-19
Stainless Steel Adapter for 18.5" to 19" (47 to 48.3 cm) diameter drum. Measure diameter 1/2-way down drum. |
|
55/30SS-20.5
Stainless Steel Adapter for 20" to 20.5" (50.8 to 52.1 cm) diameter drum. Measure diameter 1/2-way down drum. |
|
55/30SS-22
Stainless Steel Adapter for 21.5" to 22" (54.6 to 55.9 cm) diameter drum. Measure diameter 1/2-way down drum. |
| EB
OPTION: Factory installed SEALED 12V battery on NEW drum handler for export shipment |
|
|
EC
OPTION: Battery Charger for single-phase 240V 50Hz/60Hz power supply with NEW drum handler. Customer must provide correct plug. |
|
GB
OPTION: Factory Installed Green Battery on NEW drum handler. Environmentally friendly lithium-ion battery with up to 5 yr. design life. |
| NB
OPTION: NO Battery on NEW drum handler. End user to install battery before use... Group size 27 12V deep cycle. |
|
| NC
OPTION: No Charger. Customer must obtain 12V charger. |
|
| PB
OPTION: Factory Installed Premium 12V Battery on NEW drum handler |
|
| TB-400SS
OPTION: Factory Installed extra battery and charger on NEW stainless steel 400 series hydra- lift karrier to double duty cycle. |
|
| TPB-400SS
OPTION: Factory Installed 2 premium batteries and 2 chargers on stainless steel 400 series karrier to double duty cycle. |
|
|
X02-400-72SS
OPTION: Factory Installed 9" stainless steel hand crank on NEW 400A-72SS Series. Replaces pull chain drum tilt control. |
|
X03-400-72SS
OPTION: Factory Installed 16" diameter stainless steel hand wheel on NEW 400A-72SS Series. Replaces pull chain drum tilt control. |
| 55/30SS-19B
Stainless Steel Diameter Adapter for 18.5"-19" Drum. Integrated brackets adjust to 38" tall drum. **Measure outside diameter 1/2-way down drum. |
|
|
55/30SS-32G
Stainless Steel Diameter Adapter for 32-gallon Rubbermaid Brute model 2632 |
|
|
55/30SS-44G
Stainless Steel Diameter Adapter for 44-gallon Rubbermaid Brute model 2643 |
| 1111i-p
option, factory installed auxiliary valve. Allows metering the lowering of the lift cylinder. Can be closed for postive hold. |
|
|
3900SSI-P
OPTION: Factory Installed Stainless Steel MORStop Tilt-Brake on NEW manual tilt drum handler. Auto holds drum tilt angle until you move it. |
|
4556SS-P
Kit:Stainless Steel MORCINCH Bracket to prevent RIMLESS or RIMMED plastic drum from slipping. Adjust to 31-39" tall drum. NOT complete drum handler |
|
4560BSS-P
KIT: Stainless steel MORCINCH Top Rim Clamp to prevent a RIMMED plastic or fiber drum from slipping. Adjust for RIMMED 30-55 gallon drum. |
|
5115ssi-p
OPTION: Factory installed 2" x 3' Web Strap and Stainless Steel Ratchet on NEW MORCINCH Drum Holder. Replaces cinch chain around drum. |
| 5597SSI-P
OPTION: Factory installed stainless steel ratchet and pawl on NEW stainless steel MORCINCH drum holder |
|
| 6388SS-P
STAINLESS STEEL ADAPTOR FOR USE WITH 4556SS-P BRACKET ASSEMBLY IN ORDER TO HANDLE 55 GALLON RUBBERMAID MODEL 2655 |
|
| 6746-P
KIT, SEAL, 1.5" CYL, 783K-P |
|
| FGO
OPTION: Factory Installed 1-Gallon of Food Grade Hydraulic Oil |
|
| LTC4
Load test one unit at Morse factory and ship with Load Test Certificate. NOT for Below-Hook model. |
|
| SSG-MT
OPTION: Factory Installed stainless steel tilt gears and chain on NEW manual tilt 400 or 500 series. 800 Lb. capacity |
