515SS-N-125


Some items have Special Edition Morse 100th Anniversary *GOLD* Finish.

Stainless Steel Scale-Equipped Vertical-Lift Drum Pour. Weigh/pour to 60". 12V DC Power lift.Hand crank tilt. Welds NOT ground or polished.


515SS-N-125

Specific to model 515SS-N-125...
  • Model 515SS-N-125 has 12V battery DC power lift, and hand crank manual drum tilt

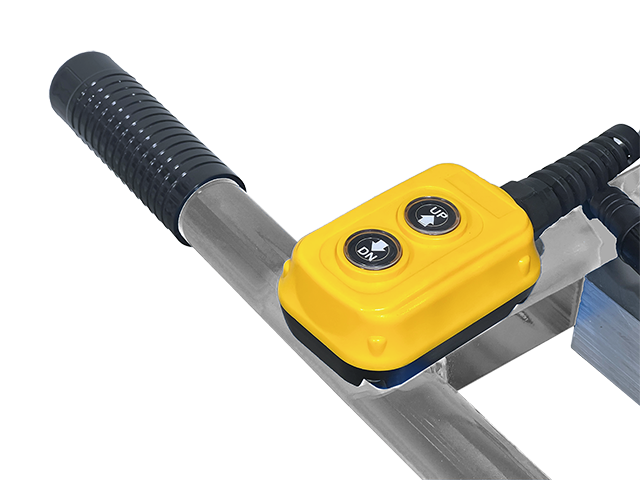

    • Operate battery power controls to raise and lower drum
    • Hand Crank controlled drum tilt
  • Frame is made of type 304 Stainless Steel with bead blast finish. Welds are NOT ground smooth or polished.
  • Dispense at up to 60" (152 cm) high
  • NOT for use in hazardous areas
  • We recommend the MORStopTM Tilt-Brake Option to automatically lock drum tilt angle
  • Includes battery and charger
All Scale-Equipped Drum Pourers...
  • Mobile Scale-Equipped Drum Handler to Lift, Weigh, Transport and Dispense a drum
  • Weigh drum as you pour to dispense exact amount needed
  • Accuracy of +/- 0.2% of displayed weight
  • Rotate drum 360 degrees forward and back to dispense into vat, hopper, mixer or other container
  • MORCINCHTM Drum Handling System
    • Automatically adjusts for 22" to 23.5" (56 to 59.7 cm) diameter drum
    • Install correct MORCINCHTM Kit to handle plastic or fiber drum
    • Insert correct size Diameter Adapter for each smaller drum
REQUEST QUOTE CLICK TO CALL

General

Full Capacity

800 Lb. (363.20 kg)

Half-full Capacity 500 Lb. (227.00 kg)

Half-full capacity is an indication of the capacity for an unbalanced, bottom-heavy drum. A partially full drum with an unbalanced and shifting load is harder to tilt than a full drum.

Dispense height 60.0" (152.40 cm)
Lift style Power lift
Tilt style Manual tilt

Shipping information

Ship length 72" (182.88 cm)
Ship width 43" (109.22 cm)
Ship height 82" (208.28 cm)
Ship weight 826 Lb. (375.00 kg)
Ship class 150
sticky note 4-digit serial numbers are simply the month & year of manufacture.
Example: 1120 is November 2020
Click serial range to download.
Spec Sheet
Serial range

500SS Series Stainless Steel Vertical-Lift Drum Pourers

Stainless Steel Characteristics
Click serial range to download.
Material Safety data sheet
Serial range

388-P Battery Safety Data Sheet

NOCO Premium Plus Automatic Transmission fluid
Click serial range to download.
Parts Diagram
Serial range

Base Assembly

Hydraulic Lift Cylinder

Hydraulic Power Pack

MORCINCH Drum Holder

OPTION: Stainless Steel Gears, Manual Tilt
Operators Manual
Serial range

Battery Charger

Battery Charging Information

CE Declaration of Conformity

Hydraulic Power Pack

N Scale Package
4173X-P thumbnail image 4173X-P

Fully enclosed crate for export of 515, 525, 611 or 620 Series. Crate is heat treated and certified IPPC IPPC compliant.

55/30SS-14.5 thumbnail image 55/30SS-14.5

Stainless Steel Adapter for 14-14.5" (35.6-36.8 cm) dia. drum. Brackets for up to 38" (96.5 cm) tall drum. Measure diameter 1/2-way down drum.

55/30SS-16 thumbnail image 55/30SS-16

Stainless Steel Adapter for 15.5-16" (39.4-40.6 cm) dia. drum. Brackets for up to 38" (96.5 cm) tall drum. Measure diameter 1/2-way down drum.

55/30SS-17.5 thumbnail image 55/30SS-17.5

Stainless Steel Adapter for 17-17.5" (43.2-44.5 cm) dia. drum. Brackets for up to 38" (96.5 cm) tall drum. Measure diameter 1/2-way down drum.

55/30SS-19 thumbnail image 55/30SS-19

Stainless Steel Adapter for 18.5" to 19" (47 to 48.3 cm) diameter drum. Measure diameter 1/2-way down drum.

55/30SS-20.5 thumbnail image 55/30SS-20.5

Stainless Steel Adapter for 20" to 20.5" (50.8 to 52.1 cm) diameter drum. Measure diameter 1/2-way down drum.

55/30SS-22 thumbnail image 55/30SS-22

Stainless Steel Adapter for 21.5" to 22" (54.6 to 55.9 cm) diameter drum. Measure diameter 1/2-way down drum.

EB

OPTION: Factory installed SEALED 12V battery on NEW drum handler for export shipment

EC thumbnail image EC

OPTION: Battery Charger for single-phase 240V 50Hz/60Hz power supply with NEW drum handler. Customer must provide correct plug.

GB thumbnail image GB

OPTION: Factory Installed Green Battery on NEW drum handler. Environmentally friendly lithium-ion battery with up to 5 yr. design life.

NB

OPTION: NO Battery on NEW drum handler. End user to install battery before use... Group size 27 12V deep cycle.

NC

OPTION: No Charger. Customer must obtain 12V charger.

PB

OPTION: Factory Installed Premium 12V Battery on NEW drum handler

TB-500

OPTION: Factory Installed extra battery and charger on NEW 500 Series Vertical-Lift Drum Pourer to double duty cycle

TPB-500

OPTION: Factory Installed 2 premium batteries and 2 chargers on 500 Series Vertical-Lift Drum Pourer. Doubles duty cycle.

55/30SS-19B

Stainless Steel Diameter Adapter for 18.5"-19" Drum. Integrated brackets adjust to 38" tall drum. **Measure outside diameter 1/2-way down drum.

55/30SS-32G thumbnail image 55/30SS-32G

STAINLESS STEEL DIAMETER ADAPTOR FOR 32-GALLON RUBBERMAID BRUTE MODEL 2632

55/30SS-44G thumbnail image 55/30SS-44G

STAINLESS STEEL DIAMETER ADAPTOR FOR 44-GALLON RUBBERMAID BRUTE MODEL 2643

1111i-p

option, factory installed auxiliary valve. Allows metering the lowering of the lift cylinder. Can be closed for postive hold.

2993i-P

Replace 8" dia. front wheels with 5" dia. front wheels.

3006SSI-P

Option: factory installed stainless steel hydraulic cylinder, 1.5" x 29", on new 400A-96SS, 510SS OR 515SS series.

3900SSI-P thumbnail image 3900SSI-P

OPTION: Factory Installed Stainless Steel MORStop Tilt-Brake on NEW manual tilt drum handler. Auto holds drum tilt angle until you move it.

4556SS-P thumbnail image 4556SS-P

Kit:Stainless Steel MORCINCH Bracket to prevent RIMLESS or RIMMED plastic drum from slipping. Adjust to 31-39" tall drum. NOT complete drum handler

4560BSS-P thumbnail image 4560BSS-P

KIT: Stainless steel MORCINCH Top Rim Clamp to prevent a RIMMED plastic or fiber drum from slipping. Adjust for RIMMED 30-55 gallon drum.

5115ssi-p thumbnail image 5115ssi-p

OPTION: Factory installed 2" x 3' Web Strap and Stainless Steel Ratchet on NEW MORCINCH Drum Holder. Replaces cinch chain around drum.

5597SSI-P

OPTION: Factory installed stainless steel ratchet and pawl on NEW stainless steel MORCINCH drum holder

6388SS-P

STAINLESS STEEL ADAPTOR FOR USE WITH 4556SS-P BRACKET ASSEMBLY IN ORDER TO HANDLE 55 GALLON RUBBERMAID MODEL 2655

6659-P

SEAL KIT FOR 1-1/2" CLYINDER

CRC-515SS

OPTION: Factory Installed corrosion resistant lift chains on NEW 515SS Series

FGO

OPTION: Factory Installed 1-Gallon of Food Grade Hydraulic Oil

SSC-500

OPTION: Factory Installed 6" diameter stainless steel swivel casters on NEW 500 Series Vertical-Lift Drum Pourer

SSG-MT

OPTION: Factory Installed stainless steel tilt gears and chain on NEW manual tilt 400 or 500 series. 800 Lb. capacity
