Drum Tumblr Logo310 Series

Images of Morse
Tilt-To-Load Drum Tumblers

Rotate a Plastic, Steel or Fiber Drum
of Various Sizes to mix the contents

Tilt-To-Load Drum Tumblers Rotate a Drum "End-Over-End"

Morse 310 Series Tilt-To-Load Drum Tumbler
Morse Tilt-To-Load Drum Rotator tumbles a drum "corner-over-corner" for vigorous mixing of drum contents.
Tumble Drum with Morse Tilt-To-Load Drum Tumbler
Tumble a plastic, steel or fiber drum with Morse Tilt-To-Load Drum Tumbler
Load an upright drum at floor level
Load an upright drum at floor level
Drum Holder of Tilt-To-Load Drum Tumbler
The drum holder accepts steel, plastic or fiber drum of various sizes. It securely holds the
drum on bottom support plate with a ratchet web strap around drum and two top clamps.

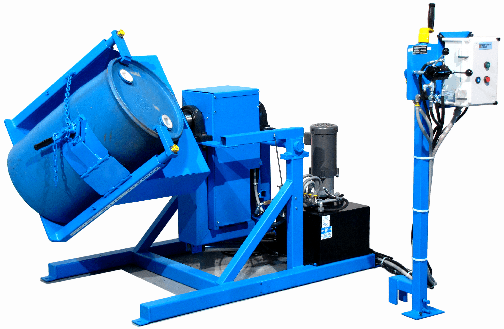

Rotate a plastic drum end over end to mix the contents
Rotate a plastic drum end-over-end to re-homogenize stratified or settled contents

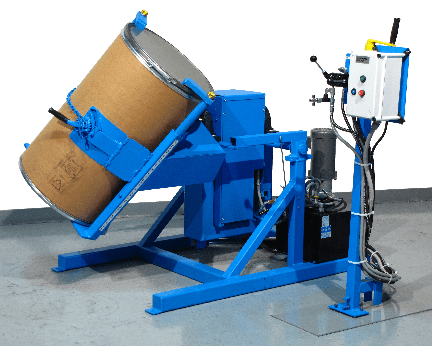

Tumble a fiber drum to mix the contents
Tumble a fiber drum end-over-end to mix the contents
Control Packages for Tilt-To-Load Drum Tumblers (Sold Separately)
Electric Package Box for NON-Explosion-Proof electric models
AC Control Package NEMA 4/12 for NON-Hazardous Areas includes
wire terminals for external connection of safety interlock switch

Controls for Explosion-Proof Models
Explosion-Proof AC Control Package NEMA 7/9 for Hazardous Areas includes
control box with start and stop buttons, and wire terminals for external safety interlock
Guard Enclosure with Safety Interlock (Sold Separately)
Safety enclosure with interlock for Tilt-To-Load Drum Tumbler
Enclosure with safety interlock automatically shuts of the drum tumbler when the door
is opened.

Note: OSHA Requirement for enclosure with safety interlock IMPORTANT - OSHA holds the employer responsible for the suitability of design and application of tools and machinery.
Install all Morse Rotators in accordance with requirements for enclosure and safety interlock, etc. One way to accomplish this is with a Morse enclosure with safety interlock, so the rotator automatically turns off when enclosure door is opened. Power connections and motor controls must also comply with applicable local codes.

For OSHA compliance in the USA, see OSHA subpart O.1910.212(a)(4) "Barrels, containers, and drums. Revolving drums, barrels, and containers shall be guarded by an enclosure which is interlocked with the drive mechanism, so that the barrel, drum, or container cannot revolve unless the guard enclosure is in place."

product page





Tilt-To-Load Drum Rotator - Morse Tilt-To-Load Drum Rotator
