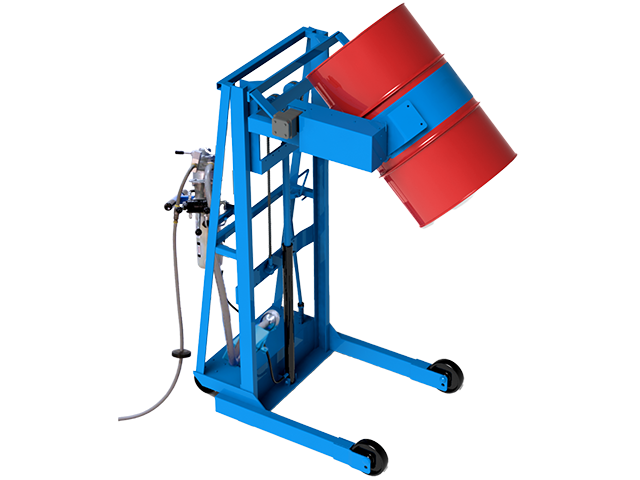

Vertical-Lift Drum Pourer with Spark Resistant Parts. Pour up to 60" high. AIR Power drum lift and tilt.
510M-114
- Model 510M-114 has Spark Resistant Parts, and AIR power drum lift and tilt controls
- On/Off valve and lift valve raise drum
- Second valve to control hydraulically-driven drum tilt
- Manual release valve lowers drum
- Dispense drum at up to 60" (152 cm) high
- Mobile Drum Handler to Lift, Move and Dispense a drum
- Rotate drum 360 degrees forward and back to dispense into vat, hopper, mixer or other container
- MORCINCHTM Drum Handling System
- Automatically adjusts for 22" to 23.5" (56 to 59.7 cm) diameter drum
- Install correct MORCINCHTM Kit to handle plastic or fiber drum
- Insert correct size Diameter Adapter for each smaller drum
General
| Full Capacity | 800 Lb. (363.20 kg) |
| Half-full Capacity | 500 Lb. (227.00 kg)
Half-full capacity is an indication of the capacity for an unbalanced, bottom-heavy drum. A partially full drum with an unbalanced and shifting load is harder to tilt than a full drum. |
| Dispense height | 60.0" (152.40 cm) |
| Lift style | Power lift |
| Tilt style | Power tilt |
Shipping information
| Ship length | 74" (187.96 cm) |
| Ship width | 48" (121.92 cm) |
| Ship height | 82" (208.28 cm) |
| Ship weight | 685 Lb. (310.99 kg) |
| Ship class | 150 |
4-digit serial numbers are simply the month & year of manufacture. Example: 1120 is November 2020
|
55/30M-14.5
Spark Resistant Adapter for 14-14.5" (35.6-36.8 cm) dia. drum. Brackets for up to 38" (96.5 cm) tall drum. Measure diameter 1/2-way down drum. |
|
55/30M-17.5
Spark Resistant Adapter for 17-17.5" (43.2-44.5 cm) dia. drum. Brackets for up to 38" (96.5 cm) tall drum. Measure diameter 1/2-way down drum. |
|
55/30M-19
Spark Resistant Adapter for 18.5" to 19" (47 to 48.3 cm) diameter drum. Measure diameter 1/2-way down drum. |
|
|
55/30M-20.5
Spark Resistant Adapter for 20" to 20.5" (50.8 to 52.1 cm) diameter drum. Measure diameter 1/2-way down drum. |
|
|
55/30M-22
Spark Resistant Adapter for 21.5" to 22" (54.6 to 55.9 cm) diameter drum. Measure diameter 1/2-way down drum. |
|
|
55/30m-16
Spark Resistant Adapter for 15.5-16" (39.4-40.6 cm) dia. drum. Brackets for up to 38" (96.5 cm) tall drum. Measure diameter 1/2-way down drum. |
|
4556CM-P
Kit: Bracket with Spark Resistant Parts for drum with Drum Cone. Prevents drum slipping length-ways. Adjust for 30-38" (76-96.5 cm) tall. |
|
55/30M-19B
Spark Resistant Adapter for 18.5" TO 19" diameter drum. Integrated brackets adjust for up to 38" tall drum. MEASURE O.D. 1/2-WAY DOWN DRUM |
| 1111i-p
option, factory installed auxiliary valve. Allows metering the lowering of the lift cylinder. Can be closed for postive hold. |
|
| 2993i-P
Replace 8" dia. front wheels with 5" dia. front wheels. |
|
| 3004Xi-P
Fully enclosed crate for export of 510 or 512 Series. Crate is heat treated and certified IPPC compliant. |
|
| 3869I-P
OPTION: Factory Installed 3/8" Filter, Regulator & Lubricator on NEW Air Powered 400, 405, 410, 510, 515, 520, 525, 611 or 620 Series |
|
|
4556M-P
KIT:Spark Resistant MORCINCH Bracket to prevent RIMLESS or RIMMED plastic drum from slipping. Adjust to 31-39" tall drum. NOT complete drum handler. |
|
4560BM-P
KIT: Spark resistant MORCINCH top rim clamp to prevent a rimmed plastic or fibre drum from slipping. Adjust for rimmed 30 to 55gal drum. |
|
5115MI-P
OPTION: Factory Installed 2" x 3' Web Strap and Ratchet on NEW Spark Resistant MORCINCH Drum Holder. Replaces cinch chain around drum. |
| 6349-P
KIT, SEAL, 6318-P, 6319-P |
|
| 6388-P
Adapter for use with 4556-P Bracket Assembly in order to handle 55 gallon Rubbermaid Brute 2655 |
|
| 6659-P
SEAL KIT FOR 1-1/2" CLYINDER |
|
| FGO
OPTION: Factory Installed 1-Gallon of Food Grade Hydraulic Oil |
|
| k208-p
AIR MOTOR SERVICE KIT FOR 290-A-2P |
|
| LTC4
Load test one unit at Morse factory and ship with Load Test Certificate. NOT for Below-Hook model. |
|
| SCW-500
OPTION: Factory Installed static conductive wheels and casters on NEW 500 Series, Have conductive rubber tread. |
