5-Gallon Can Tumblers - Pail, Can or Bucket Mixers


Morse Morse PailPRO 5-gallon pail handlersCan Tumblers provide aggressive corner-over-corner mixing action. Mix products inside your sealed cans or pails with these can rotators to reduce hazards and save clean-up. Use your pail and can mixer to blend the contents of closed 1 to 5 gallon pails or cans (4 to 19 liter pails or cans).

  • Morse 5-Gallon Can Tumblers mix or agitate small batches quickly and economically
  • Re-homogenize settled ingredients
  • Use as pail or pail or bucket mixer to blend liquid or dry materials
  • Tumble pails of parts with media to deburr or polish them

These are Can Tumblers that turn cans
end-over-end continuously in one direction

> > These are NOT Can Shakers < <

Double Can Tumblers Single Can Tumblers

2-305 Series

Double Can Tumblers - Pail and Can Mixers. 5-Gallon can agitators.
Rotate 1 or 2 cans at a time

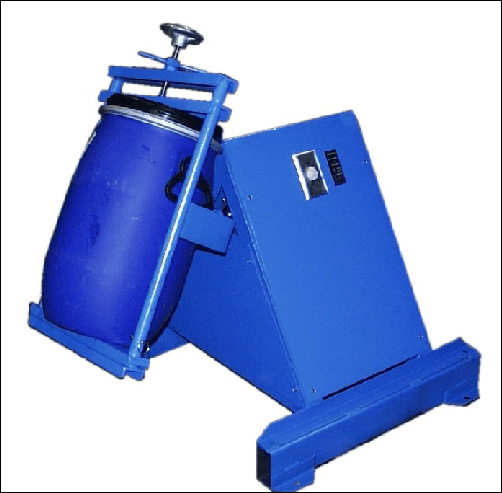

1-305 Series

Single Can Tumblers - Pail and Can Mixers. 5-Gallon pail agitators.
Rotate 1 can

  • These pail and pail or bucket mixers hold cans at an angle to horizontal resulting in a vigorous "corner-over-corner" mixing action
  • Can Tumblers rotate pails continuously in one direction. Pail mixers do NOT shake or oscillate cans.
  • Accept steel or plastic cans and pails:
    • Up to 12.5" (31.75 cm) diameter
    • 4.5" to 16.5" (12 to 42 cm) tall
    • Includes typical 5-gallon cans
  • Capacity: 100 Lb. (45.5 kg) per can
  • Tumbling speed: 23 RPM (19 RPM on 50Hz models)

Please notePlease note: Morse 5-Gallon Can Tumblers rotate pails at a constant 23 RPM in one direction. They are NOT can shakers, as they do NOT shake or oscillate cans.

  • Can tumblers provide exceptional savings when materials to be agitated are already packed in cans
  • Quickly secure pail in can mixer holder with hand wheel on threaded rod and locking handle
  • Can mixer base dimensions: 28" x 28" (71 x 71 cm). See Can Tumbler Spec Sheet for other dimensions.
  • Domestic ship dimensions: L42" W42" H34" (107 x 107 x 86 cm)

Motors on Morse 5-Gallon Can Tumblers

  • 1/4 HP, 60 Hz in choice of voltage, phase, TEFC or explosion proof (50 Hz also available)
  • Single phase, 115V TEFC version on model 2-305-1 or 1-305-1 includes a timer you set at 1 to 60 minutes for automatic shut-off. Timer is NOT available on other pail mixer models.
  • Air motors are also available. Air motors are vane-type and require correctly sized filter, regulator, lubricator, valve (FRL) and piping supplied by customer. See Air Motor Technical Information. Filter, regulator and lubricator (FRL) for your pail mixer may be ordered from Morse.
    • Part # 90010-P - Description: KIT, 1/4" FRL & VALVE
    • Part # 90020-P - Description: KIT, 3/8" FRL & VALVE
  Enclosure Kit with Safety Interlock
(sold separately)
for Morse 5-gallon pail agitators


Safety Enclosure for Morse 5-Gallon Can Tumblers
Guard Enclosure for DOUBLE Can Tumbler
Model GEK-2-305-1
(Can Tumbler sold separately)

Enclosure with Safety Interlock for Single Can Tumbler
Guard Enclosure for SINGLE Can Tumbler
Model GEK-1-305-1
(Can Tumbler sold separately)



Note: OSHA Requirement for enclosure with safety interlock IMPORTANT - OSHA holds the employer responsible for the suitability of design and application of tools and machinery.
Install all Morse Rotators in accordance with requirements for enclosure and safety interlock, etc. One way to accomplish this is with a Morse enclosure with safety interlock, so the rotator automatically turns off when enclosure door is opened. Power connections and motor controls must also comply with applicable local codes.

For OSHA compliance in the USA, see OSHA subpart O.1910.212(a)(4) "Barrels, containers, and drums. Revolving drums, barrels, and containers shall be guarded by an enclosure which is interlocked with the drive mechanism, so that the barrel, drum, or container cannot revolve unless the guard enclosure is in place."


Options for 5-Gallon Can Tumblers with Larger Can Holder(s)
Handle a larger pail or can with your Morse Can Tumbler. These options include a raised base and larger can holder(s) to accommodate a can:
  • Up to 16" (40.6 cm) diameter
  • 11" to 22" (28 to 55.9 cm) tall
  • Capacity: 100 Lb. (45.5 kg) per can
IMPORTANT NOTE: Require larger enclosures than standard can tumblers.
Option # XLC-1-305
for SINGLE Can Tumbler
Option # XLC-2-305
for DOUBLE Can Tumbler
Custom Can Tumbler for taller can
Single Can Tumbler shown with option to mix a larger can installed. Option XLC-1-305 includes a raised base for the Can Tumbler and 1 larger can holder.
Option XLC-2-305 for larger cans
Double Can Tumbler shown with option to mix a larger cans installed. Option XLC-2-305 includes a raised base for the Can Tumbler, and 2 larger can holders
Option # Description
XLC-1-305 Tumble a Larger Can on 1-305 Series Single Can Tumblers
GEK-XLC-1-305 Series Larger Enclosures for Single Can Tumbler with Option XLC-1-305
XLC-2-305 Tumble 2 Larger Cans on 2-305 Series Double Can Tumblers
GEK-XLC-2-305 Series Larger Enclosures for Double Can Tumbler with Option XLC-2-305

Morse Can Tumblers - Pail and Can Mixers   Guard Enclosure Kit
(Sold Separately)
Description Power Supply
Can Tumbler
Model #
Rotates Motor Volts AC Hz Phase Full Load
Amp Draw
Domestic
Ship Weight
2-305-1 1 or 2 Cans
at 23 RPM
1/4 HP TEFC with 1 to 60 Minute Timer 115V 60 1 5 205 Lb.
(93 kg)
GEK-2-305-1
2-305-1-50 1 or 2 Cans
at 19 RPM
1/2 HP TEFC 110 / 220V 50 1 7.2 / 3.6 205 Lb.
(93 kg)
GEK-2-305-1-50
2-305-1-230 1 or 2 Cans
at 23 RPM
1/4 HP TEFC 208 / 230V 60 1 3.0 / 2.5 205 Lb.
(93 kg)
GEK-2-305-1-230
2-305-3 1 or 2 Cans
at 23 RPM
1/4 HP TEFC 208 / 230 / 460V 60 3 1.7 / 1.3 / .7 205 Lb.
(93 kg)
GEK-2-305-3
2-305-3-50 1 or 2 Cans
at 19 RPM
1/4 HP TENV 190 / 380V 50 3 1.2 / .6 205 Lb.
(93 kg)
GEK-2-305-3-50
2-305-575 1 or 2 Cans
at 23 RPM
1/2 HP TEFC 575V 60 3 .8 205 Lb.
(93 kg)
GEK-2-305-575
2-305-A 1 or 2 Cans
at 23 RPM
1/4 HP Air Motor (Technical Info) - - - - 190 Lb.
(86 kg)
GEK-2-305-A
2-305-E1 1 or 2 Cans
at 23 RPM
1/4 HP Explosion Proof 115 / 208-230V 60 1 5 / 2.6-2.5 210 Lb.
(95 kg)
GEK-2-305-E1
2-305-E1-50 1 or 2 Cans
at 19 RPM
1/4 HP Explosion Proof 110 / 220V 50 1 5.6 / 2.8 210 Lb.
(95 kg)
GEK-2-305-E1-50
2-305-E3 1 or 2 Cans
at 23 RPM
1/4 HP Explosion Proof 208-230 / 460V 60 3 1.4-1.3 / .7 231 Lb.
(105 kg)
GEK-2-305-E3
2-305-E3-50 1 or 2 Cans
at 19 RPM
1/2 HP Explosion Proof 230 / 400V 50 3 1.7 / 1.0 231 Lb.
(105 kg)
GEK-2-305-E3-50
2-305-E575 1 or 2 Cans
at 23 RPM
1/2 HP Explosion Proof 575V 60 3 .7 231 Lb.
(105 kg)
GEK-2-305-E575
1-305-1 1 Can
at 23 RPM
1/4 HP TEFC with 1 to 60 Minute Timer 115V 60 1 5 175 Lb.
(80 kg)
GEK-1-305-1
1-305-1-50 1 Can
at 19 RPM
1/2 HP TEFC 110 / 220V 50 1 7.2 / 3.6 175 Lb.
(80 kg)
GEK-1-305-1-50
1-305-1-230 1 Can
at 23 RPM
1/4 HP TEFC 208 / 230V 60 1 3.0 / 2.5 175 Lb.
(80 kg)
GEK-1-305-1-230
1-305-3 1 Can
at 23 RPM
1/4 HP TEFC 208 / 230 / 460V 60 3 1.7 / 1.3 / .7 155 Lb.
(70 kg)
GEK-1-305-3
1-305-3-50 1 Can
at 19 RPM
1/4 HP TENV 190 / 380V 50 3 1.2 / .6 155 Lb.
(70 kg)
GEK-1-305-3-50
1-305-575 1 Can
at 23 RPM
1/2 HP TEFC 575V 60 3 .8 155 Lb.
(70 kg)
GEK-1-305-575
1-305-A 1 Can
at 23 RPM
1/4 HP Air Motor (Technical Info) - - - - 155 Lb.
(70 kg)
GEK-1-305-A
1-305-E1 1 Can
at 23 RPM
1/4 HP Explosion Proof 115 / 208-230V 60 1 5 / 2.6-2.5 180 Lb.
(82 kg)
GEK-1-305-E1
1-305-E1-50 1 Can
at 19 RPM
1/4 HP Explosion Proof 110 / 220V 50 1 5.6 / 2.8 180 Lb.
(82 kg)
GEK-1-305-E1-50
1-305-E3 1 Can
at 23 RPM
1/4 HP Explosion Proof 208-230 / 460V 60 3 1.4-1.3 / .7 180 Lb.
(82 kg)
GEK-1-305-E3
1-305-E3-50 1 Can
at 19 RPM
1/2 HP Explosion Proof 230 / 400V 50 3 1.7 / 1.0 180 Lb.
(82 kg)
GEK-1-305-E3-50
1-305-E575 1 Can
at 23 RPM
1/2 HP Explosion Proof 575V 60 3 .7 180 Lb.
(82 kg)
GEK-1-305-E575

Single phase 60Hz non-explosion-proof can tumblers (models 1-305-1 and 2-305-1) are equipped with 60 minute timer, and plug into standard 115V wall outlet.

All other Morse can tumblers are shipped without control, cord and plug... and must be installed by an electrician according to local codes and customer's preference.

Explosion Proof motors are rated for Class I Group D, and Class II Groups F and G.

Air powered models require plant air at 40 psi and flowing at a rate of 22 scfm. Filter, Regulator, Lubricator and valve (part # 90010-P) should be installed in the air line ahead of the motor.
