Drum dumper shown with Top Rim Clamp Option for rimmed 55-gallon plastic drum
Top Rim Clamp Option
for rimmed 55-gallon plastic drum
Drum dumper shown with Bracket Assembly Option for rimless plastic drum, and recommended for fiber drum
Bracket Assembly Option
for rimless plastic drum,
and recommended for fiber drum
Drum dumper shown with Optional Diameter Adaptor for smaller drum
Optional Diameter Adaptors
for various sizes of smaller drum
MORStop Tilt-Brake Option # 3900i-P
Option # 3900i-P
MORStop Tilt-Brake

automatically prevents
uncontrolled drum tilting
Option G-400 3-Piece Drum Holder
Option # G-400
3-Piece Drum Holder for handling ONLY a 22.5" (57.2 cm) diameter 55-gallon (210 liter) ribbed steel drum. Hinges on sides and toggle clamp closure.

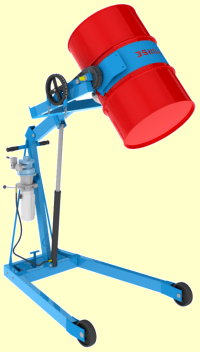

Hydra-Lift Karrier model 400A-72-124
Model 400A-72-124
has 72" lift height, air power lift, and pull chain for drum tilt control

Hydra-Lift drum carrier with air power lift - Model 400A-72-124
Four year old Ben
can lift an 800 Lb. drum
with Model 400A-60-124

Air Power Lift
Hydra-Lift Drum Karriers

Morse ergonomic air powered lift option provides an ergonomic method to lift and control pour of a drum. Simply attach to your plant airline, and you are ready to lift and pour a 55-gallon (210 liter) steel drum weighing up to 800 Lb. (363 kg).

This option retains manual tilt control of the drum with hand crank or chain wheel and pull chain. See manual tilt control options below.

Air Motor Power- Lift with Manual-Tilt

  • Air motor powered hydraulic lift
  • Power lift makes drum handling easier and faster
  • Handle to control drum lift
  • Vane type air motor requires 40 psi at 40 scfm. Do NOT exceed 60 psi. Air Motor Technical Info


  • Filter, regulator, lubricator and valve (FRL) are available at extra cost
    • Part # 3869i-P is FRL option on new unit.
    • Part # 3869-P is FRL Kit for field installation on unit with serial # 0802 or later.
    • Part # 90020-P is FRL Kit for field installation on unit with serial # 0702 or earlier.

Lift heights available on Morse drum dumpersAvailable in 2 different lift heights

Hydra-Lift drum dumpers are available with 72" or 96" (183 or 244 cm) maximum lift height.

Maximum lift height is measured from the floor to the lowest point of a horizontal 55-gallon (210 liter) steel drum.

[an error occurred while processing this directive]
Model # Lift Height Drum Tilt Control
400A-96-124 96" (244 cm) Chain wheel and pull chain
400A-72-124 72" (183 cm) Chain wheel and pull chain
400A-60-124 72" (183 cm) Hand crank

Models with Spark Resistant Parts
Spark resistant parts reduce the possibility of mechanical sparks as a possible source of ignition.

Model # Lift Height Drum Tilt Control
400AM-96-124 96" (244 cm) Chain wheel and pull chain
400AM-72-124 72" (183 cm) Chain wheel and pull chain
400AM-60-124 72" (183 cm) Hand crank
Air Power Lift
Controls for air power lift - Option 124

Control for Air Power-Lift

  1. Hold lever to LIFT drum
  2. Handle to LOWER drum

You can also convert your existing manual lift model to Air power lift

Power Lift Kits for field installation
Printable Sheet of kits
for field installation
on your Morse drum dumper
Options and Accessories
Option # Description
4560-P Top Rim Clamp for rimmed 55-gallon plastic drum
4560M-P Spark Resistant Top Rim Clamp for rimmed 55-gallon plastic drum
4556-P Bracket Assembly required for rimless 55-gallon drum
4556M-P Spark Resistant Bracket Assembly required for rimless 55-gallon drum
55/30 Series Diameter Adaptors for various sizes of smaller drum
55/30M Series Spark Resistant Diameter Adaptors for various sizes of smaller drum
3900i-P MORStop Tilt-Brake
X02-400-72 Simple Hand Crank for 72" manual tilt models
X02-400-96 Simple Hand Crank for 96" manual tilt models
X03-400-72 16" Hand Wheel for 72" manual tilt models
X03-400-96 16" Hand Wheel for 96" manual tilt models
G-400 3-Piece Drum Holder
Parts Diagrams for X01, X02 and X03 Manual Tilt Control Options


Last Updated: 03/13/19

Air powered lift provides an ergonomic method to lift and control dispensing of your drum.
