Drum dumper shown with Top Rim Clamp Option for rimmed 55-gallon plastic drum
Top Rim Clamp Option
for rimmed 55-gallon plastic drum
Drum dumper shown with Bracket Assembly Option for rimless plastic drum, and recommended for fiber drum
Bracket Assembly Option
for rimless plastic drum,
and recommended for fiber drum
Drum dumper shown with Optional Diameter Adaptor for smaller drum
Optional Diameter Adaptors
for various sizes of smaller drum
MORStop Tilt-Brake Option # 3900i-P
Option # 3900i-P
MORStop Tilt-Brake

automatically prevents
uncontrolled drum tilting
Option G-400 3-Piece Drum Holder
Option # G-400
3-Piece Drum Holder for handling ONLY a 22.5" (57.2 cm) diameter 55-gallon (210 liter) ribbed steel drum. Hinges on sides and toggle clamp closure.

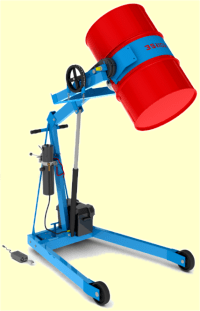

Hydra-Lift drum carrier with battery power lift - model 400A-72-125
Model 400A-72-125
Hydra-Lift drum carrier
with 72" lift height
and battery power lift

Hydra-Lift Drum Karriers
with Battery Power Drum Lift and Manual Drum Tilt

Morse Hydra-Lift drum carriers with battery powered lift option provide an ergonomic method to lift and control pouring of your drum. Charge the on-board 12V deep cycle battery with the separate charger supplied, and use the drum carrier with no need to plug into power or air line.

This option retains manual tilt control of the drum with hand crank or chain wheel and pull chain. See manual tilt control options below.

Battery powered models are NOT for use in areas classified as hazardous.

Battery Power-Lift with Manual-Tilt.

  • 12V Deep cycle battery provides self contained power
  • Charger included for wall or shelf mount
  • Handle to control drum lift


Note about Battery Options for Export 12V Deep Cycle Lead Acid Battery is designed for domestic shipment only. For export shipment, choose the following battery option:

  • Option "NB" - No Battery. Customer must obtain battery before use... Exide # 27MDP 12V Deep Cycle Battery or equivalent.

Morse Green Battery Option # GB Green Battery
  • Environmentally friendly Lithium Iron Phosphate Rechargeable Battery - No harmful gas or acid leaks and spills
  • Lighter than conventional lead-acid starting battery
  • Up to 2000 cycles, providing up to 8 times longer cycle life than lead-acid battery
  • No maintenance - Store up to 1 year without recharge
  • Typical design life of 5 years

Environmentally friendly battery contains no poisonous lead, no acid, and does not create gasses during charge, which regular lead-acid batteries do. Compared to lead-acid, green battery is super light, has much lower self-discharge, and does not sulfate.

Rechargeable 12.8V 100Ah Battery requires no change to lead acid battery charging system.


[an error occurred while processing this directive]

Lift heights available on Morse drum dumpersAvailable in 2 different lift heights

Hydra-Lift drum dumpers are available with 72" or 96" (183 or 244 cm) maximum lift height.

Maximum lift height is measured from the floor to the lowest point of a horizontal 55-gallon (210 liter) steel drum.

Model # Lift Height Description
400A-96-125 96" (244 cm) 12V Battery Power Lift, Manual Chain wheel and pull chain drum tilt
400A-72-125 72" (183 cm) 12V Battery Power Lift, Manual Chain wheel and pull chain drum tilt
400A-60-125 72" (183 cm) 12V Battery Power Lift, Manual Hand Crank Drum Tilt
Battery Power Lift
Control for battery power lift - Option 125

Control for Battery Power-Lift

There is a single handle to control LIFT and LOWER of the drum.

You can also convert your existing manual lift model to Battery power lift

Power Lift Kits for field installation
Printable Sheet of kits
for field installation
on your Morse drum dumper
Options and Accessories
Option # Description
4560-P Top Rim Clamp for rimmed 55-gallon plastic drum
4560M-P Spark Resistant Top Rim Clamp for rimmed 55-gallon plastic drum
4556-P Bracket Assembly required for rimless 55-gallon drum
4556M-P Spark Resistant Bracket Assembly required for rimless 55-gallon drum
55/30 Series Diameter Adaptors for various sizes of smaller drum
55/30M Series Spark Resistant Diameter Adaptors for various sizes of smaller drum
3900i-P MORStop Tilt-Brake
X02-400-72 Simple Hand Crank for 72" manual tilt models
X02-400-96 Simple Hand Crank for 96" manual tilt models
X03-400-72 16" Hand Wheel for 72" manual tilt models
X03-400-96 16" Hand Wheel for 96" manual tilt models
G-400 3-Piece Drum Holder
Parts Diagrams for X01, X02 and X03 Manual Tilt Control Options


Last Updated: 03/13/19

Battery powered lift provides an ergonomic method to lift and control dispensing of your drum.
